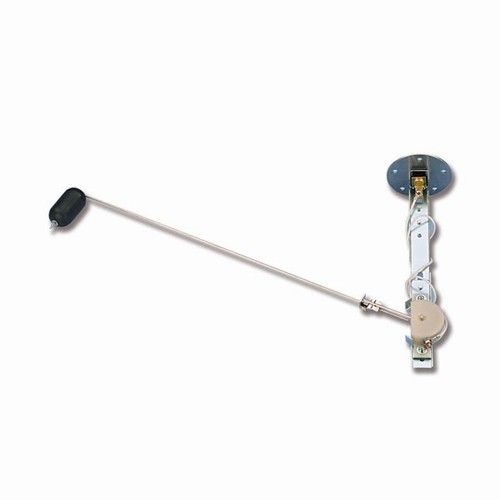

LEVEL GAUGE FOR FUEL TANKS — L3280040 TREM
Price:
€19.63
-
Code:L3280040 TREM
12V. Universal model, suitable to be used with all engine instruments on market. For fuel tanks 13 - 68 cm.
TANK DEPTH, mm | A mm | B mm | TANK DEPTH, mm | A mm | B mm | |
---|---|---|---|---|---|---|
127 | 68 | 67 | 419 | 270 | 213 | |
140 | 76 | 73 | 432 | 279 | 219 | |
152 | 86 | 79 | 445 | 287 | 225 | |
165 | 94 | 86 | 457 | 297 | 231 | |
178 | 103 | 92 | 470 | 305 | 238 | |
191 | 111 | 98 | 483 | 314 | 244 | |
203 | 121 | 105 | 495 | 322 | 251 | |
216 | 130 | 111 | 508 | 332 | 257 | |
229 | 140 | 117 | 521 | 340 | 264 | |
241 | 148 | 124 | 533 | 349 | 270 | |
254 | 157 | 130 | 546 | 357 | 276 | |
267 | 165 | 137 | 559 | 367 | 283 | |
279 | 175 | 143 | 571 | 375 | 289 | |
292 | 183 | 149 | 584 | 384 | 295 | |
305 | 192 | 156 | 597 | 392 | 302 | |
318 | 200 | 162 | 610 | 427 | 308 | |
330 | 210 | 168 | 622 | 411 | 314 | |
343 | 217 | 175 | 635 | 419 | 321 | |
356 | 227 | 181 | 648 | 427 | 327 | |
368 | 235 | 187 | 660 | 437 | 333 | |
381 | 244 | 194 | 673 | 445 | 340 | |
391 | 252 | 200 | 686 | 452 | 346 | |
406 | 262 | 206 |
