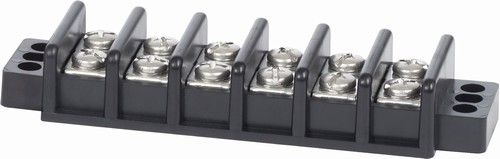

TERMINAL BLOCKS 30A — K0302506 TREM

Price: €11.25

Code:

K0302506 TREM

Each screw pair is one isolated circuit. Terminal block jumpers allow creation of common circuits. Closed back design completely insulates power from the mounting surface. Bus material in Nickel-plated brass.
ОЕМ: 2506

Specifications
Circuits	6
Length	4.38in (111.25 mm)
Maximum Voltage	600V AC/DC
Continuous Rating	30A
Base Material	UL 94 V0, PC
Bus Material	Nickel-Plated Brass
Mounting Screw	#10 [M5]
Screw Material	Stainless Steel
Screw Terminal Torque	10 in-lb (1.13 Nm)
Terminal Screws	M4
Wire Terminal Size	#8 [M4]
Weight	0.21lb (0.1 kg)
