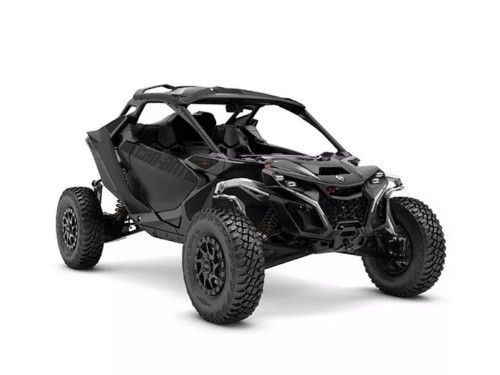

MAVERICK R X RS DCT 999T — 7ARJ CAN-AM
-
Code:7ARJ CAN-AM
HIGHLIGHTS
• 77 in. (195.6 cm) 4 Link Trailing arm with aluminum HD tall knuckle
• Smart-Lok™ front differential
• FOX® 3.0 PODIUM RC2® Piggyback with bypass, dual speed compression and rebound adjustments
• 10.25 in. (26 cm) touchscreen display
• 32 in. (81.3 cm) ITP Tenacity XNR tires
• 16 in. (40.6 cm) FlowFormed Beadlock wheels
• Front and rear camera
• Telescopic steering wheel with infotainment controls
• Full roof
• Full skid plate
• 4-point harness with shoulder pads
• Premium high-performance LED headlights
• Can-Am LED signature
• Center dashboard storage with cell phone holder
• X-package graphics/seats
• 1,700 W Magneto
- Engin type:179 kW (240 hp), Rotax 999T DCT engine, 999cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-perfomance air filter
- Fuel Delivery System:Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
- Transmission:Rotax DCT, 7 Speed with High & Low range
- Drive Train:Lockable front differential with exclusive SmartLok. True 2WD/4WD with front diff. lock /4WD TRAIL ACTIV/ 4WD TRAIL
- Power Steering:Gen 2 Tri-mode DPS High torque
- Speed category:N/A km/h
- Front Suspension:Forged Aluminum heavy duty Tall Knuckle - Double A-arm with sway bar / 25 in. (63.5 cm) travel
- Front Shocks:FOX HPG piggyback 2.5 with bypass (H/L Comp, Reb, dual-rate spring)
- Rear Suspension:4 Link Trailing arm with Forged Aluminum heavy duty Tall Knuckle / 25.5 in. (64.8 cm) travel
- Rear Shocks:FOX HPG 3.0 with bypass (H/L Comp, Reb, dual-rate spring)
- Front & Rear Tires:XPS Track Force 32 x 10 x 16 in. (81.3 x 25.4 x 40.6 cm)
- Wheels:16 in. (40.6 cm) Aluminum FlowFormed Beadlock
- Front brakes:32 mm hydraulic tripple piston caliper with a 265 mm disc
- Rear Brakes:30 mm hydraulic twin piston caliper with a 255 mm disc
- Cage:High strengh steel (Dual phase) steel tubing and stampings
- Dry Weight:1016 kg
- Dimensions L x W x H:355.6x198.5x181.5 cm
- Wheelbase:274.3 cm
- Ground Clearance:43.2 cm
- Rack Capacity:90 kg
- Storage Capacity:8.1 L
- Fuel Capacity:50 L
- Gauge:4.5 in. (11.4 cm) wide digital display with keypad & 10.25 in. (26 cm) touchscreen display
- Instrumentation:USB A (Charging port & Communication port), DC outlet (10A)
- Magneto:1700 W
- Anti-theft System:RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button
- Lighting:Premium high-performance LED headlights Can-Am LED signature
- Winch:4,500 lb winch ready bumper (not installed)
- Protection:• Full roof • Premium half doors • Front lower deflector • Front / Rear anchor • Full plastic skid plate
File | Info |
---|---|
MAVERICK R X RS DCT 999T /en/ | [PDF, 462.87 KB] |
