SEA-DOO/CAN-AM

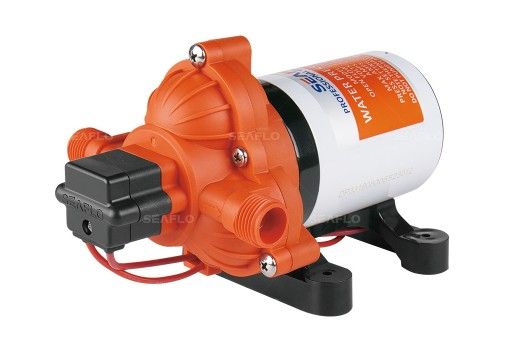

DIAPHRAGM PUMP 12V SERIE 33 — SFDP103004533
Price:
€110.44
-
Code:SFDP103004533
| STANDARD PUMP CONFIGURATIONS | |
| Model | SFDP1-030-045-33 |
| Voltage | 12V |
| Open Flow (GPM/LPM） | 3.0 / 11.3 |
| Control Type | Switch |
| Max Draw | 8.0A |
| Shut-off Pressure (PSI/BAR) | 45 / 3.1 |
| Valves | EPDM |
| Diaphragm | Santoprene |
| Ports | 1/2"-14 MNPT |
| Wire Connections | 2-Pin/Leads |
| PUMP | |
| Type | 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 45 PSI : 35 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | 1/2"-14 MNPT |
| Weight | 4.2 lbs (1.9 kg) |
| MOTOR | |
| Leads | 16 AWG, 13" (33 cm) long with 2-Pin connector / Leads |
| Duty Cycle | Intermittent |
| Max.Amp Draw | 8.0 A |
| Fuse | 12.0 A |
