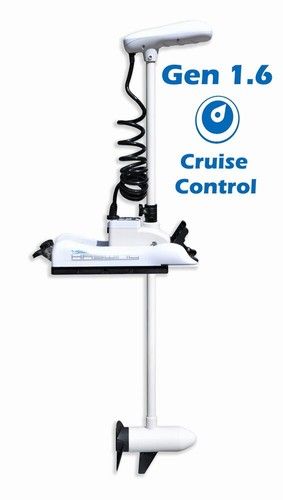

HASWING CAYMAN B 80 GPS GEN 1.6 CRUISE CONTROL, 183 cm, WHITE — 50737-183W HASWING
-
Code:50737-183W HASWING

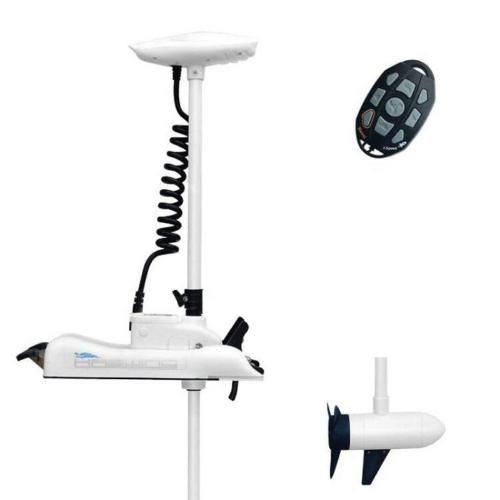

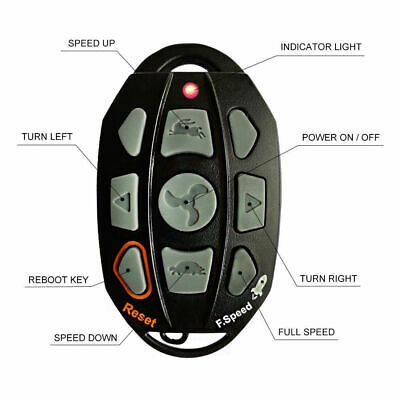

The Cayman B Bow Moint Trolling Motor aimed at serious fisherman who require versatility of guiding their motor via a wireless hand remote or wired foot pedal. This feature packed bow mount trolling motor come standard with a wireless hand control, sacrificial anode and encapsulated electronics. Supplied standard with all the necessary stainless steel nuts and bolts to fit straight onto the boat, or option up with our quick release plate with a foot print of just 120mm x 200mm when not in use. All motors feature LED battery meters and 1.5 meter wiring loom. Upgraded packages are available which include the wired foot controller and quick release mounting plate. Suitable for both salt and fresh water.
SPECIFICATION:
Model
|
50737-183W |
Max Voltage | DC 24V |
Depth Adjustment | Depth Collar |
Max Thrust | 80Lbs |
Prop Type | 2blade prop 11.4inch diam |
Pro Speed at Full Power: | Max. 1500 rpm underwater |
Battery Type | 2x105AH deep cycle |
Max Boat Length & Load | 21ft |
Steering Ratio | 360degree electric control |
Power - Max | 1080W |
Amp - Max | 45A |
Decivel Level (db) | 50db |
Mount | Bow Mount |
Shaft Type | stainless steel 316 |
Shaft Length | 72inch |
File | Info |
---|---|
Cayman_b_gps_series | [PDF, 1.94 MB] |
Instruction-manual | [PDF, 873.1 KB] |
Helmsman-Quick-Start /bul./ | [PDF, 1.99 MB] |
50736-37 | [PDF, 420.67 KB] |
