SEA-DOO/CAN-AM

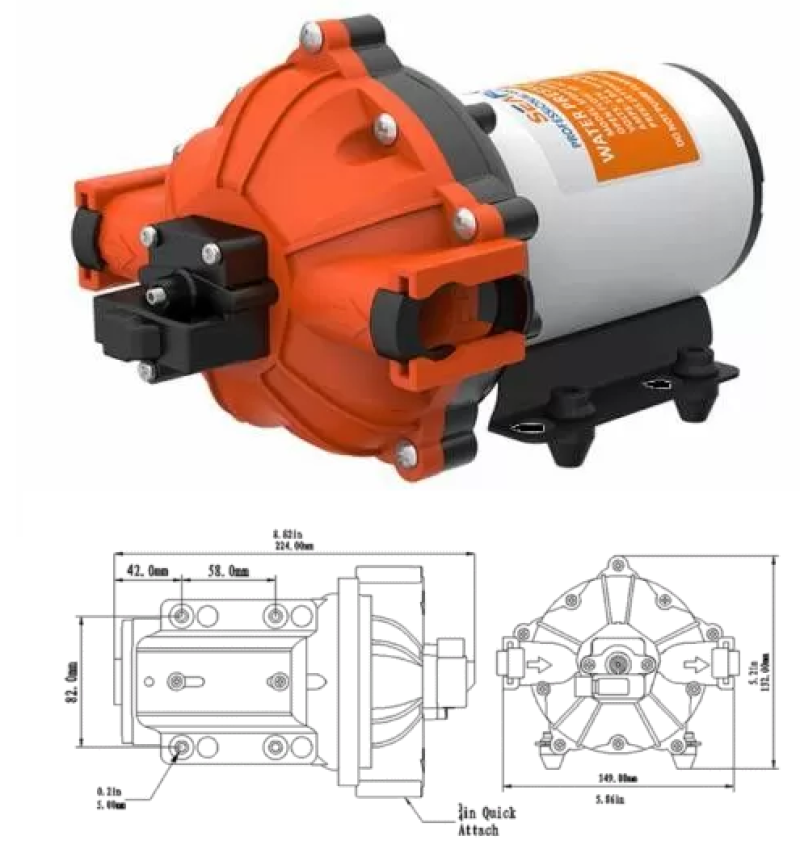

DIAPHRAGM PUMP 12V SERIE 52 — SFDP105006052
Price:
€132.94
-
Code:SFDP105006052
| PUMP | |
|---|---|
| Type | 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure |
Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar) Shut-off Pressure70 PSI ：56 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | QUICK ATTACH |
| Weight | 5.9 lbs (2.7 kg) |
| MOTOR | |
|---|---|
| Leads | 14 AWG, 13" (33cm) long with 2-Pin connector/Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 18.0 A |
| Fuse | 27.0 A |
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM |
AMPS |
| 0 | 0 | 4.86 | 18.40 | 5.12 |
| 10 | 0.69 | / | / | / |
| 20 | 1.38 | 3.54 | 13.40 | 9.14 |
| 30 | 2.07 | 3.22 | 12.20 | 10.39 |
| 40 | 2.76 | 2.85 | 10.80 | 11.57 |
| 50 | 3.45 | 2.64 | 10.00 | 12.66 |
| 60 | 4.14 | 0 | 0 | 13.72 |
