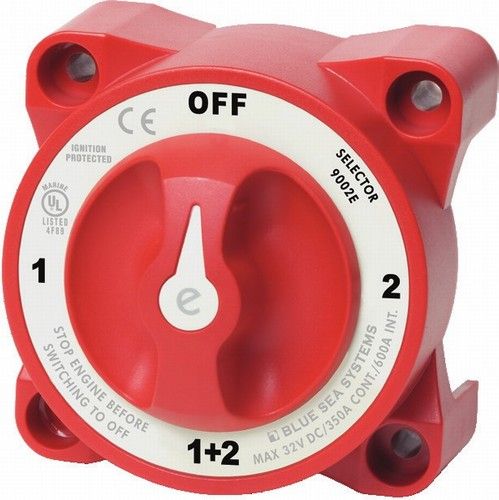

SWITCH BATTERY 4 WAY — BS9002E

Includes Alternator Field Disconnect (AFD) which protects the diodes in the alternator in the event of the switch being switched to the OFF position while the engine is running. If the AFD is not used to protect the alternator, an LED can be connected to the AFD terminals to indicate when the battery switch is in any position but OFF.

Specifications:

Cranking Rating: 30 sec. 1,200A per circuit
Intermittent Rating: 5 min. 600A per circuit
Continuous Rating: 350A per circuit
Voltage Max. Operating: DC 32V
